Access Doors, Square, panel

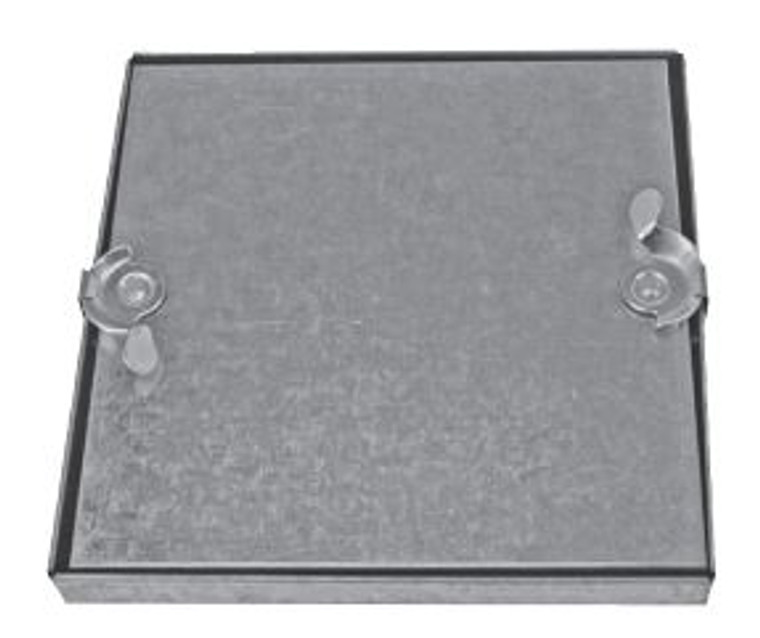

6 X 6 Square Insulated Access Door

SKU:
080-0005

Log in for pricing

Current Stock:

Door Frame: 24 ga. galvanized steel. Conforms to ASTMA 653.
Door Face: 24 ga. galvanized steel. Conforms to ASTMA 653.
Insulation: Fiberglass blanket
Seals: Door to Frame/Frame to Door-Neoprene gasket. Conforms to
ASTM-D 1056-68. Temperature range -20ºF to 225ºF .26 K Factor.
Latches: Dual Camlock action on all doors 12” square and under.
Two extra camlocks on larger sizes. Latches constructed of zinc
plated cold rolled steel. Steel conforms to ASTMA-A-366. Plating
conforms to ASTMA-164-55.
Manufactured to SMACNA standard or better; designed for
installation in duct having up to 3” W.G.

Adding to cart… The item has been added
Description

Door Frame: 24 ga. galvanized steel. Conforms to ASTMA 653.
Door Face: 24 ga. galvanized steel. Conforms to ASTMA 653.
Insulation: Fiberglass blanket
Seals: Door to Frame/Frame to Door-Neoprene gasket. Conforms to
ASTM-D 1056-68. Temperature range -20ºF to 225ºF .26 K Factor.
Latches: Dual Camlock action on all doors 12” square and under.
Two extra camlocks on larger sizes. Latches constructed of zinc
plated cold rolled steel. Steel conforms to ASTMA-A-366. Plating
conforms to ASTMA-164-55.
Manufactured to SMACNA standard or better; designed for
installation in duct having up to 3” W.G.

Additional Information
Width:
6.25 (in)
Height:
6.25 (in)
Depth:
2.00 (in)
View Data Sheet:
